Pipe Clamps
We are manufacturer and exporter of wide range of
Pipe Clamp used for supporting piping systems. They possess the features of
high dimensional accuracy, corrosion resistance, high efficiency and
durability.
Features
- Designed as per DIN-3015
- Rib designed structure to provide resistance against impact and
vibration dampening.
- Provides strength in the direction of the Tube axis ensuring high
degree of sound deadening.
- Selection of pipe – Tube clamps are as per Pipe OD, W.P.
ratings, types of steel material being used for piping , numbers of
piping lines.

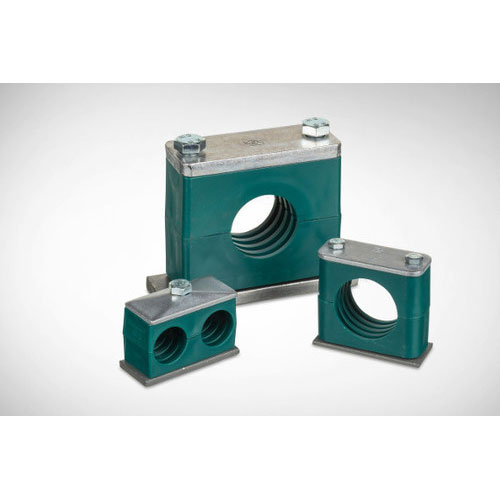

Standard Series (Light Series) Pipe Clamp
Ask for Price
Item Code : PCL
Standard Series or light series pipe clamps are normally used for general
purpose. These pipe clamps are price effective and used widely for general
application.
These pipe clamps are supplied as:
- Individual Pipe Clamp with welding plate,
- Individual Pipe Clamp without welding plates
- Multilayer construction
- Rail nuts construction
Features
- Designed as per DIN-3015 part-1
- Standard Pipe - Tube clamps available in Plastic Polypropylene and
Polyimide , Aluminum clamp bodies with Steel / S.S. plates & bolts
- W.P. range up to 1500 PSI (100 BAR) for application in Steel /
stainless steel piping system
Material and Design of Clamp Body:
- Polypropylene: Colour Green.
- Polyamide: Colour Black
- Thermoplastic Elastomer: Colour Black
- Aluminum: Colour Natural.
Alternative materials and colours in addition to the above stated
standard is available upon request.
Materials and surface finishing of metal parts:
- Carbon Steel Trivalent or Yellow zinc plated (Standard Trivalent
plated)
- Carbon Steel Phosphated
- Stainless Steel – SS 304 or SS 303
- Stainless Steel – SS 316
Product Details :
| Design | as per DIN-3015 part-1 |
| Surface Finishing | Finished |
| Condition | New |
| Material | Polypropylene,Polyamide,Thermoplastic Elastomer |
| Usage/Application | Electrical fittings |
Yes! I am Interested

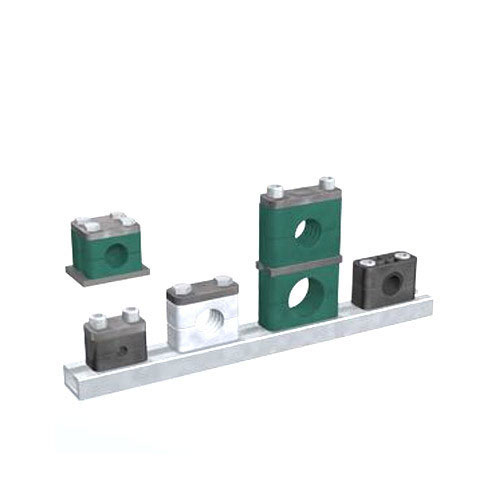

Heavy Series Pipe Clamp
Ask for PriceItem
Code : PCH
The standard range of heavy series pipe - tube clamps are normally used for
support piping system in general applications. W.P. range of pipe - tube
clamps with more then 1500 PSI ( 100 BAR) and up to 8000 psi (600 BAR) find
application in Steel / stainless steel Piping System.
These pipe clamps are supplied as:
- Individual Pipe Clamp with welding plate,
- Individual Pipe Clamp without welding plates
- Multilayer construction
- Rail nuts construction
Features
- Designed as per DIN-3015 part-2
- Standard Pipe - Tube clamps available in Plastic Polypropylene and
Polyimide , Aluminum clamp bodies with Steel / S.S. plates & bolts
- W.P. range above 1500 PSI (100 BAR) for application in Steel /
stainless steel piping system
Material and Design of Clamp Body:
- Polypropylene: Colour Green.
- Polyamide: Colour Black
- Thermoplastic Elastomer: Colour Black
- Aluminum: Colour Natural.
Alternative materials and colours in addition to the above stated
standard is available upon request.
Materials and surface finishing of metal parts:
- Carbon Steel Trivalent or Yellow zinc plated (Standard Trivalent
plated)
- Carbon Steel Phosphated
- Stainless Steel – SS 304 or SS 303
- Stainless Steel – SS 316
Yes! I am Interested

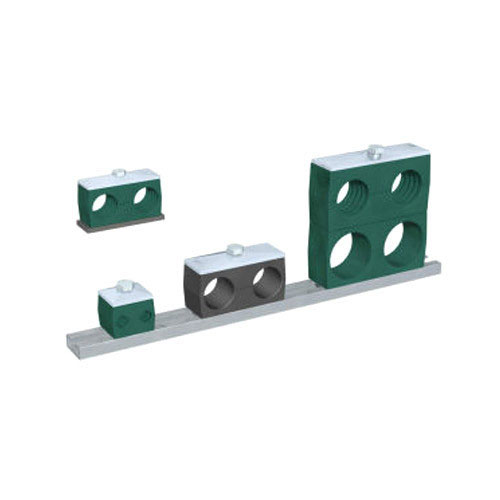

Twin Series Pipe Clamp
Ask for Price
Item Code : PCT
Twin Series Pipe - Tube clamps - DIN 3015 Part 3 are designed to clamp two
identical Pipe - tube to the Piping Systems. These pipe - tube clamps
feature thick plates & heavy bolts to resist High Pressure Piping
Application.
Features
- Sizes ranging from 6 MM od up to 50.8 MM OD.
- Capable of resisting W.P. up to 3500 psi ( 300 Bar)
- Available in Plastic - PP / PA with Steel & stainless steel
plates & bolts
- Can be availed along with Multilayer, Welding plates, Rail Nuts, etc.
- Available in different construction type including Rubber Inlay Types
& many more
Material and Design of Clamp Body:
- Polypropylene: Colour Green.
- Polyamide: Colour Black
- Thermoplastic Elastomer: Colour Black
- Aluminum: Colour Natural.
Alternative materials and colours in addition to the above stated
standard is available upon request.
Materials and surface finishing of metal parts
- Carbon Steel Trivalent or Yellow zinc plated (Standard Trivalent
plated)
- Carbon Steel Phosphated
- Stainless Steel – SS 304 or SS 303
- Stainless Steel – SS 316
Yes! I am Interested
Aluminum Series Pipe Clamp
Ask for Price
Item Code : PCHAL
Aluminum series pipe -tube clamps are normally used for high temperature
applications (more than 260 degree Celsius) & the W.P. range more then
1500 PSI (100 BAR) and up to 8000 psi (600 BAR) in the Steel / stainless
steel Piping System.
Features
- Designed according to DIN 3015 - Part -2
- Aluminum Pipe - Tube clamp bodies with Steel / S.S. plates &
bolts.
- Constructed through high tensile aluminum extrusion.
- Available along with Multilayer, Welding plates, Rail Nuts, etc.
- Can be availed in different construction types including Rubber Inlay
Types & many more
Yes! I am Interested

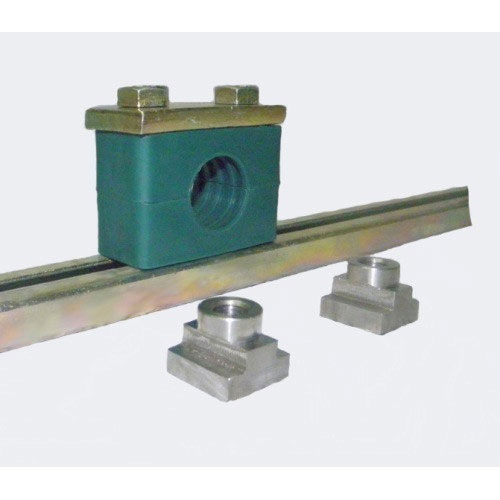

Rail Nut Pipe Clamp
Ask for PriceStand
series rail mounted clamp is designed as per DIN-3015 Part – 1 and
pipe clamp is normally used in general steel piping for support
where pipe support is to be given with specific distance or
adjustment. Rail mounted clamp us also used where different OD types of
clamp is to be given in one line.
Features
- Designed as per DIN-3015 Part – 1
- Easy to install.
- Easy to Maintain.
Material and Design of Clamp Body:
- Polypropylene: Colour Green.
- Polyamide: Colour Black
- Thermoplastic Elastomer: Colour Black
- Aluminum: Colour Natural.
Alternative materials and colours in addition to the above stated
standard is available upon request.
Materials and surface finishing of metal parts
- Rail Patti - M S Trivalent or Yellow zinc plated (Standard Trivalent
plated)
- Rail Patti – SS 304 or 316 Natural or Bright Finish
- Rail Nut - Carbon Steel Trivalent or Yellow zinc plated (Standard
Trivalent plated)
- Rail Nut - Stainless Steel – SS 304 or SS 303
- Rail Nut - Stainless Steel – SS 316
Yes! I am Interested

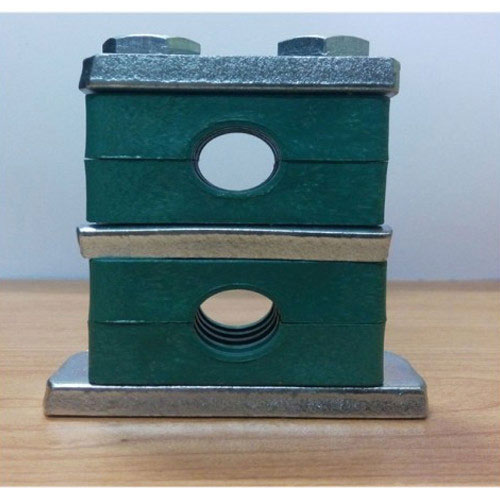

Multilayer Pipe Clamps
Ask for PriceMultilayer
Pipe Clamps - DIN 3015 Part 1, 2 and 3 - Tube clamps are used for securing a
tool to a multi-piece panel assembly. They can clamp vertically in 2 layers
/ 3 layers up to any numbers of layers but recommended up to 3 layers.
Features
- Available in plastic / aluminum bodies with steel or stainless steel
plates and bolts
- Resistant to corrosion and rust
- Multilayer Pipe - Tube clamps are specially designed for light duty /
heavy duty & twin series only
Material and design of clamp body:
- Polypropylene: colour Green.
- Polyamide: colour Black
- Thermoplastic elastomer: colour Black
- Aluminum: colour natural.
Alternative materials and colours in addition to the above stated
standard is available upon request.
Materials and surface finishing of metal parts
- Carbon steel trivalent or yellow zinc plated (standard trivalent
plated)
- Carbon steel phosphated
- Stainless steel – SS 304 or SS 303
- Stainless steel – SS 316.
Yes! I am Interested
Owing to our vast experience in this domain, we are
engaged in offering a superior quality range of Hydraulic Fittings.
Manufactured using optimum quality raw material, these fittings are known
for their features like compact designs, superior finish, easy installation
and durability. The range offered by us includes Single Ferrule Hydraulic
Fittings and Double Ferrule Swagelok Type Fittings.

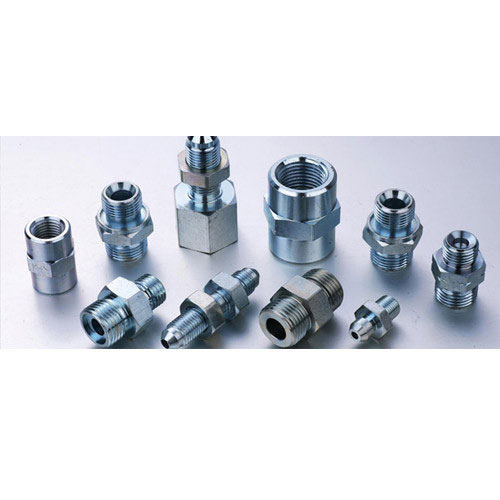

Single Ferrule Hydraulic Fittings
Ask for PriceSingle
Ferrule Hydraulic Fittings are three piece designs comprising of a Socket
having a conical seat, a hardened Progressive Ring and a Nut. When the Nut
is progressively tightened it makes the Ring “to move on to the tube,
which subsequently bites into the pipe, thereby forming a visible collar of
material in front of it.
"DL" couplings offered by us are best suited for stainless steel,
copper or stainless steel tubes where brazing, soldering, welding, flaring
or threading is not possible or permissible.
To cater all your requirements of spares of Hydraulic & Pneumatic
applications, we manufacture fittings and couplings in various designs and
specifications. These are fabricated Steel, Brass and Stainless steel in
PUNE under name “DL Hydrofit.
The fittings, couplings and adopters manufactured by us are trouble free
and leak proof and are in accordance with standards like DIN: 2353, ISO:
8434 -1, IS: 8805, JIC, SAE, CSN, TGL etc. These are available in different
designs like ERMETO, EO, PARKER, IMPERIAL, SWAGELOK and many more.
Threads like ISO 6149 METRIC (MM), METRIC TAPER (MT), BSPP, BSPT, NPT, UN,
UNF & SAE straight are used on nut ends and the plug ends.
The widest range of “DL” couplings and fittings are manufactured
using extruded and drawn bars and forgings of free cutting Steel &
Carbon steel (for steel tubes), Stainless steel 304 / 316 (for SS tubes) &
Brass (for copper tubes). All shape items like Elbows, Tees etc; are
manufactured from Forgings, which have obvious advantage over plate (a)
extreme strength & (b) high impact resistance, whereas Straight items
are manufactured from drawn bars.
These fittings are offered in variegated finishes such as Trivalent Blue,
Passivated Zinc Plating in regular and Blackening/Phosphated, Zinc Yellow
passivated. Threaded ends are protected from dust and getting damage, by
covering them with plastic end covers for a long and safe storage.
Tube to Tube fittings.
- Straight Union
- Union Elbow
- Reducing Union.
- Union Tee
- Union Cross
- Reducing Tee.
- Bulkhead Union
- Bulkhead Union Elbow.
Tube to Female Port.
- Male Stud Connector - BSP, Taper , Metric and NPT,
- Male Stud Elbow - BSP, BSP Taper , Metric.
- Male branch Tee.
- Male Run Tee.
Tube to Male Thread.
- Female Connector - BSP, Metric.
Tube to Tube port. (Adjustable Fittings)
- Swivel Adjustable Elbow
- Swivel Adjustable Branch Tee
- Swivel Adjustable Run Tee
- Stand Pipe Adaptor
- Swivel union.
Banjo Fittings.
- Banjo Elbow
- High Pressure Banjo Elbow.
Other Fittings.
- Male Female Adaptor
- Hex Nipple
- Dead Plug (closure plug)
- Union Elbow
- Reducing Union.
- Union Tee
- Union Cross
- Reducing Tee.
- Bulkhead Union
- Bulkhead Union Elbow.
Yes! I am Interested

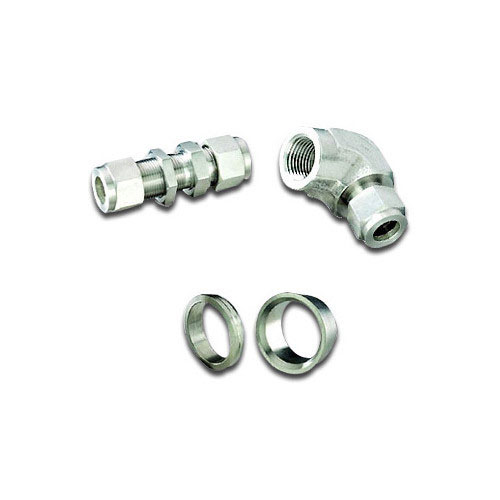

Double Ferrule Swagelok Type Fittings
Ask for Price
Double ferrule fittings work on the proven principle of two ferrules swaging
to the tube when tightened. As the nut is tightened the front ferrule swages
on to the tube making a prominent leak-proof seal and the back ferrule makes
a positive impression on the tube with the help of back cone of front
ferrule hence making a strong hold on the tube. Make and remake of the
fittings is very much eased, as nuts are silver plated internally to prevent
galling of threads. The identification between Metric and Inch fittings is
made very simple with the help of stepped shoulders in metric fittings.
Our double ferrule compression tube fittings provide leak-free performance
on demanding application. A few of industries served include oil and gases,
pulp and paper, petro-chemical/ chemical processing, research laboratories,
aerospace and defense, power generation, cryogenic and semiconductor,
shipbuilding and heavy industries. tube fittings are available in a variety
of configuration and sizes that fulfill the need for leak proof gas and
fluid containment.
Below are the types available:
Tube to Tube fittings.
- Straight Union
- Union Elbow
- Reducing Union.
- Union Tee
- Union Cross
- Reducing Tee.
- Bulkhead Union
- Bulkhead Union Elbow.
Tube to Female Port
- Male Stud Connector – BSP, Taper , Metric and NPT,
- Male Stud Elbow – BSP, BSP Taper , Metric.
- Male branch Tee.
- Male Run Tee.
Tube to Male Thread
- Female Connector – BSP, Metric.
Tube to Tube port. (Adjustable Fittings)
- Swivel Adjustable Eblow
- Swivel Adjustable Branch Tee
- Swivel Adjustable Run Tee
- Stand Pipe Adaptor
- Swivel union.
Banjo Fittings
- Banjo Elbow
- High Pressure Banjo Elbow.
Other Fittings.
- Male Female Adaptor
- Hex Nipple
- Dead Plug (closure plug)
- Union Elbow
- Reducing Union.
- Union Tee
- Union Cross
- Reducing Tee.
- Bulkhead Union
- Bulkhead Union Elbow.
Yes! I am Interested
©
DL Fluid Power Company. All Rights Reserved (Terms
of Use)
